Complete Guide to Understande VESA Mounts
November 27, 2024

Arzopa D10 Smart Photo Frame

$99.99 $169.99

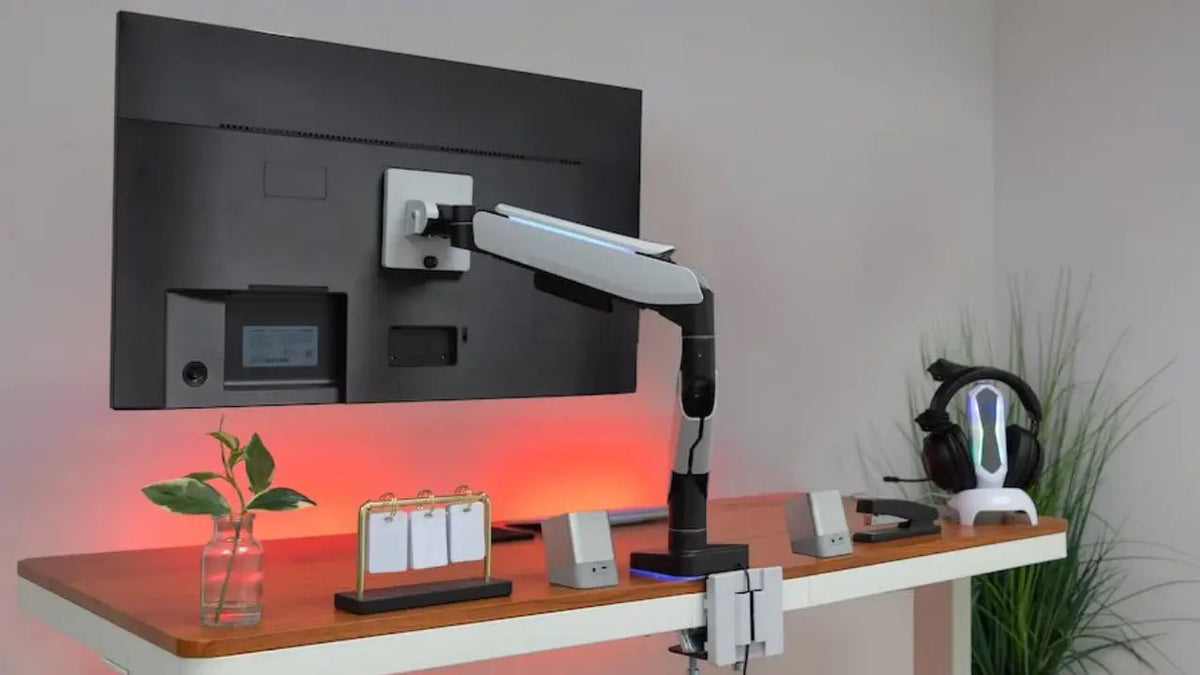

what is VESA Mounts

Table of Contents

    VESA mounts are the unsung heroes of the modern workspace, seamlessly connecting displays to a variety of mounting solutions. But behind the simple four-hole pattern lies a rich history and a surprising amount of technical depth. This comprehensive guide delves into the world of VESA mounts, covering everything from their evolution to selecting and installing the perfect mount for your needs.

    Definition and Importance of VESA Mounts

    The Video Electronics Standards Association (VESA) mount standard defines the dimensions and specifications for a four-hole pattern on the back of displays. This seemingly simple standard brings several crucial benefits: universal compatibility between displays and mounts from different manufacturers, enabling easy and secure attachment to wall mounts, desk mounts, and mobile carts. The standardized hole pattern ensures smooth installation, saving time and frustration. The consistent design also simplifies manufacturing, contributing to cost-effectiveness. This standardization has been instrumental in the widespread adoption of ergonomic and space-saving display setups. A well-chosen VESA mount can transform a cluttered workspace into a sleek and efficient environment, improving productivity and user comfort.

    A Journey Through VESA Mount History and Evolution

    The story of VESA mounts begins in 1996, with the pioneering work of Harry Sweere, founder of Ergotron. Mr. Sweere spearheaded discussions with industry leaders to establish a unified standard for mounting flat panel displays, culminating in the introduction of the Flat Panel Monitor Physical Mounting Interface (FPMPMI) in 1997. This initial standard laid the groundwork for the current system. The revised standard, the Flat Display Mounting Interface (FDMI), launched in 2002, set the foundation for the modern VESA standards we know today. The evolution continued in 2006 with significant extensions to accommodate the growing size and weight of larger displays. The original 100mm square hole pattern expanded to incorporate larger and more varied configurations, leading to the seven recognized sizes we have now. This continuous adaptation exemplifies the VESA's commitment to innovation and responsiveness to the needs of the ever-evolving display market.

    Steps to Determine Your VESA Mount Compatibility

    Before purchasing a VESA mount, confirming compatibility with your display is crucial. Here's how:

    1. Inspect the Back of Your Display: Look for a square or rectangular pattern of four mounting holes. This pattern immediately identifies your monitor's VESA compatibility.

    2. Measure Carefully: Use a ruler or measuring tape to determine the precise distance between the holes both horizontally and vertically, recording this in millimeters. The measurement (width x height) will directly tell you which VESA standard your screen adheres to.

    3. Consult Manufacturer Specifications: The official specifications on your display's manufacturer website (e.g., Dell, ASUS, Samsung) will clearly list the VESA standard if supported. These specs will not only confirm your monitor's VESA pattern but might include details about a maximum supported weight limit. This data is exceptionally important; selecting a mount with sufficient weight capacity is critical to safety.

    4. Common Measurements: Common measurements include 75mm (for VESA 75, suitable for compact screens around 15-24 inches), 100mm (for VESA 100, perfect for screens usually between 24 to 32 inches), 200mm (for VESA 200; commonly supports larger screens ranging from 32 to 50 inches), 400mm (VESA 400, designed for even larger displays exceeding 50 inches), and 600mm (VESA 600, intended for exceptionally large screens).

    VESA Mount Standards Explained in Detail

    The core of VESA mount compatibility lies in these standard hole patterns. Let’s break them down:

    VESA MIS-D Standard

    This standard is built around two common hole patterns: 75 x 75 mm and 100 x 100 mm. These are ideal for smaller monitors and televisions, typically under 30 lbs (14 kg). The widespread use of this standard guarantees a wealth of readily available and affordable mounting solutions. Ergotron, a major player in the industry, offers a diverse range of MIS-D compatible mounts.

    VESA MIS-E Standard

    MIS-E utilizes a 200 x 100 mm rectangular hole pattern, designed to support mid-sized displays weighing up to 50 lbs (23 kg). This standard caters to bigger monitors and TVs, offering reliable support for heavier equipment. Here again, Ergotron provides a good selection of MIS-E mounts, plus adapter kits for users upgrading from MIS-D.

    VESA MIS-F Standard

    For even larger displays (often exceeding 50 lbs), MIS-F enters the picture. This standard offers varied configurations in 200 mm increments, with common patterns like 400 x 200 mm and 600 x 400 mm. These patterns usually use M6 or M8 screws for enhanced strength and stability. Ergotron, showcasing their adaptability, also manufactures mounts capable of working with various hole patterns within this standard, expertly handling minor deviations that can sometimes occur.

    Understanding VESA MIS-S (A often overlooked standard)

    While MIS-D, E, and F are prevalent, the MIS-S standard deserves attention. Primarily designed for smaller screens, often integrated into laptops or compact all-in-one PCs, the MIS-S standard features a smaller hole pattern. While less commonly discussed than the others, its significance is noteworthy for smaller device users.

    VESA Mount Standards

    VESA Mount Adapters

    Not all displays adhere strictly to VESA standards. In these cases, VESA adapters serve as crucial tools for fitting non-standard devices to standard mounts. These adapters generally clamp onto the display’s existing mounting points, providing VESA-compatible holes. Choosing the right adapter requires knowing both your display's mounting pattern and the VESA standard of your chosen mount. Adapters provide flexibility, and when selecting one, always verify its weight capacity aligns with or exceeds your display’s weight.

    VESA Mount Adapters VESA -fh

    Installation of VESA Mount Adapters

    Installing a VESA adapter usually involves these steps:

    1. Preparation: Lay out all parts, tools, and instructions.

    2. Attaching the Adapter Plate: Carefully align the adapter plate to your display's mounting points and secure it firmly using the appropriate screws.

    3. Connecting to the Mount: Attach the adapter's compatible mounting points to your chosen VESA mount. Double-check the screws are adequately tight and the adapter plate remains secure to the display.

    4. Testing Stability: Once the adapter is installed, test its stability by gently moving the display. You should feel the attachment is solid, secure, and does not wobble.

    VESA Mounts for Every Setting

    The versatility of VESA mounts extends to various settings:

    Desktop VESA Mounts

    These mounts offer a space-saving alternative to bulky monitor stands. They provide excellent adjustability, allowing for optimal viewing angles and ergonomics. The convenience they bring makes a big difference in workspaces. For example, VIVO manufactures a single-arm VESA mount perfect for smaller desks.

    Desktop VESA Mounts

    Wall-Mounted VESA Mounts

    Wall mounts free up valuable desk space. Carefully choosing anchors suitable for your wall type and ensuring the mount's weight capacity meets or exceeds your monitor's weight are vital for safety. Fixed mounts are the simplest and most affordable, while tilting and full-motion mounts provide greater adjustability. Proper installation is key and involves using a stud finder for optimal support.

    Wall-Mounted VESA Mounts

    Ceiling-Mounted VESA Mounts

    Ceiling mounts maximize space and offer a unique aesthetic. They require careful planning and installation to ensure stability and safety. For high ceilings, you will need extra-long cables and potentially additional support structures. Due to the intricacies involved in the overhead installations, professional installation is typically recommended.

    Ceiling-Mounted VESA Mounts

    VESA Mounts for Specific Brands

    Several manufacturers specialize in VESA mounts, each offering unique features and price points:

    SANUS VESA Mounts

    SANUS is known for high-quality, stylish mounts. Their Elite Advanced Full Motion TV Mount, priced at $179.99, supports TVs from 19\" to 43\" and features smart height adjustments up to 4 inches. It uses solid steel for strength, boasts fluid motion with smooth tilting and swiveling, and offers simple 30-minute installation. Their Decora DMF215, priced at $299.99, accommodates larger TVs from 32\" to 55\" (up to 50 lbs). It provides excellent movement capabilities (15.43\" extension, 45° swivel, and 5° up/15° down tilt), cable management, and post-installation adjustments for leveling.

    SANUS VESA Mounts

    Image Credit: SANUS website

    Dell VESA Mounts

    Dell monitors are predominantly VESA-compliant. Determining the appropriate VESA configuration on the back of your Dell display will guide your mount selection. With several mount types available (fixed, tilting, or full motion), a considerable number of options cater to varying Dell monitor sizes and weights, from the smaller 75x75mm to the larger 200x200mm and beyond.

    Dell VESA Mounts

    Image Credit: Dell website

    VIVO VESA Mounts

    VIVO manufactures affordable mounts that focus on enhancing user experience. Their excellent value makes them a sensible choice for numerous workspace needs. Their single arm VESA mount is a great example, being easy to install and ideal for small desks.

    VIVO VESA Mounts

    Image Credit: VIVO website

    How to Choose VESA Mounts?

    VESA mounts are widely available online and in electronics stores. Major retailers such as Amazon, Best Buy, and Newegg offer a wide selection. When choosing a mount, consider:

    • Your Display's VESA Compatibility: Ensure it aligns perfectly.
    • Weight Capacity: The mount must comfortably support your display's weight plus a safety margin.
    • Mount Type: Fixed, tilt, or full-motion options dictate adjustability and cost.
    • Your Workspace Setup: Choose a mount suited for your desk, wall, or ceiling.

    Safety Considerations for Using VESA Mounts

    Improper VESA mount installation can lead to serious accidents. Several essential safety considerations are:

    • Weight Capacity: This critical measurement should never be exceeded. The manufacturer generally indicates the maximum weight a mount can support. Opting for a mount with a weight capacity that surpasses the monitor's weight by a significant margin (5-10 lbs or more) is crucial.
    • Mounting Surface: Wall mounts require identifying and utilizing wall studs for reliable support. For heavier displays, additional reinforcement measures might be needed.
    • Screw Tightness: Ensure each screw is properly tightened. Overtightening can damage the mount or the display; under-tightening jeopardizes stability.
    • Professional Installation: If you're uncertain about any aspect of the installation process, seek professional help. Improper installations pose dangerous risks.

    Exploring the Versatility of VESA Mounts

    While primarily designed for displays, the standardized mounting system of the VESA mount has sparked creative repurposing for non-display objects. Enthusiasts have successfully mounted various items, from small electronics and security cameras to custom-built projects, using VESA plates or adapters. However, venturing beyond the intended use necessitates careful scrutiny of weight limits and added safety measures. The robust anchoring and straightforward setup provide flexibility for projects beyond standard displays, but taking necessary safety precautions is key. The adaptable design creates opportunities but does not eliminate the importance of safety.

    versatility of VESA Mounts

    Conclusion

    VESA mounts represent a remarkable achievement in standardization, offering compatibility, ease of installation, and ergonomic benefits. By understanding the standards, recognizing compatibility markers, and adhering to safety guidelines, you can transform your workspace and enhance your viewing experience for years to come. The ever-evolving landscape of displays ensures that VESA standards will continue to evolve, leading to more innovative and adaptable mounting solutions in the future. Investing in a well-chosen and correctly installed VESA mount represents an investment in safety, productivity, and comfort.

    We hope this comprehensive guide has given you some insights into VESA mounts. If you have any further questions or would like to share your experiences about it, please leave a comment below. Don't forget to share this article with your friends and colleagues who may benefit from the information. Happy browsing!

    FAQ

    Can a VESA Mount Support Multiple Monitors?

    Yes, many VESA mounts support multiple monitors. Dual or triple monitor mounts come in various configurations, often using articulated arms to allow for independent adjustments of each display. These mounts are available in fixed, tilt, and full-motion options. Selecting the correct mount requires carefully considering the total weight of all monitors and the space available in your workspace. For heavier monitors, a sturdy mount with sufficient weight capacity is paramount to prevent damage or injuries. Some mounts also offer cable management features, keeping your cables organized and adding to a neat, tidy workstation. Choosing a high-quality mount is recommended, especially when working with multiple monitors; reliability and stability are vital for a smooth and safe user experience. Remember always to refer to the manufacturer's specifications for precise guidelines concerning weight limits and monitor compatibility.

    What Tools are Necessary for VESA Mount Installation?

    The essential tools required for installing a typical VESA mount vary according to the complexity of the mount; however, a basic set usually consists of:

    • Screwdrivers: Typically both Phillips-head and flathead screwdrivers. The exact size will vary depending on the screws used in your monitor and the mount itself. Consult your mount's instructions for specific requirements.
    • Measuring Tape or Ruler: Precise measurement is crucial for accurate alignment and installation; millimeter precision is highly beneficial.
    • Drill (Optional): Depending on the mount type and wall material, you may require a drill to create mounting holes. Ensure you use the appropriate drill bits for the material you are working with (wood, drywall, concrete, etc.).
    • Stud Finder: For wall-mounted installations, to secure the mount directly to sturdy wall studs. This significantly enhances stability and safety.
    • Level: To ensure the monitor is perfectly level; this is particularly critical for larger displays to prevent wobbling or unevenness.
    • Optional Supplies: Depending on the type of mount and the environment, extra materials like wall anchors, cable ties or clips, and a helper/assistant may be recommended or beneficial.

    How Do I Troubleshoot a Loose or Unstable VESA Mount?

    If your VESA mount feels loose or unstable, follow these troubleshooting steps:

    1. Double-check all screws. Ensure every screw is securely tightened. Use the correct size and type of screwdriver to prevent damage to the screw head or threads. Over-tightening can also cause damage whereas too little tightening jeopardizes your safety.

    2. Verify proper alignment. Make certain the monitor and mount are properly aligned to ensure the weight is distributed evenly across the mounting points.

    3. Examine the weight capacity. Confirm the mount's rated weight capacity is appropriate for your display's weight. Using a mount with insufficient weight capacity is dangerous and should be corrected immediately. Consider a more robust mount that exceeds your display's weight to build in a safety margin.

    4. Inspect for any damage. Carefully examine the monitor, mount and adapter (if in use) for any signs of damage, such as bent or stripped screws, cracked plastic, or breaks in the structure. Damaged parts should be changed, and professional help might be necessary.

    5. Consult installation instructions. Refer to the manufacturer's instructions from your monitor and the mount. These documents may include additional hints and advice for your specific model.

    6. Seek professional assistance. If you can't identify and rectify the issue, contact a professional installer, especially with heavier monitors or if you suspect a major mechanical fault.
